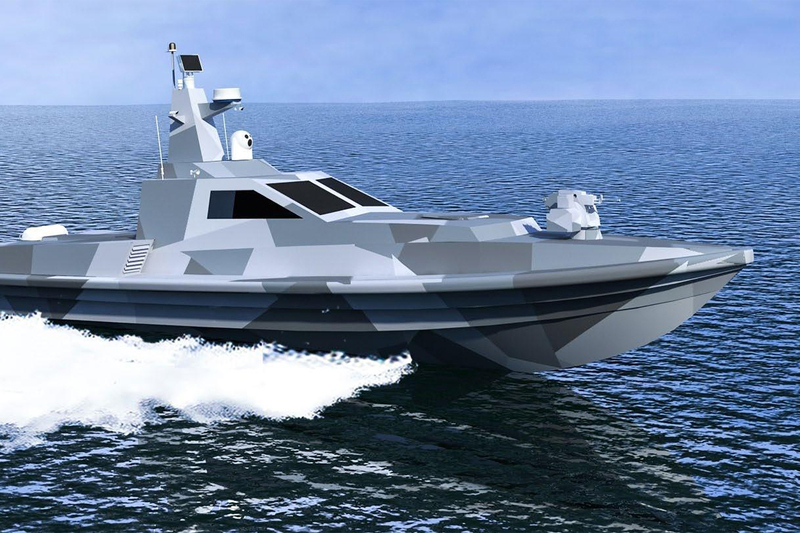

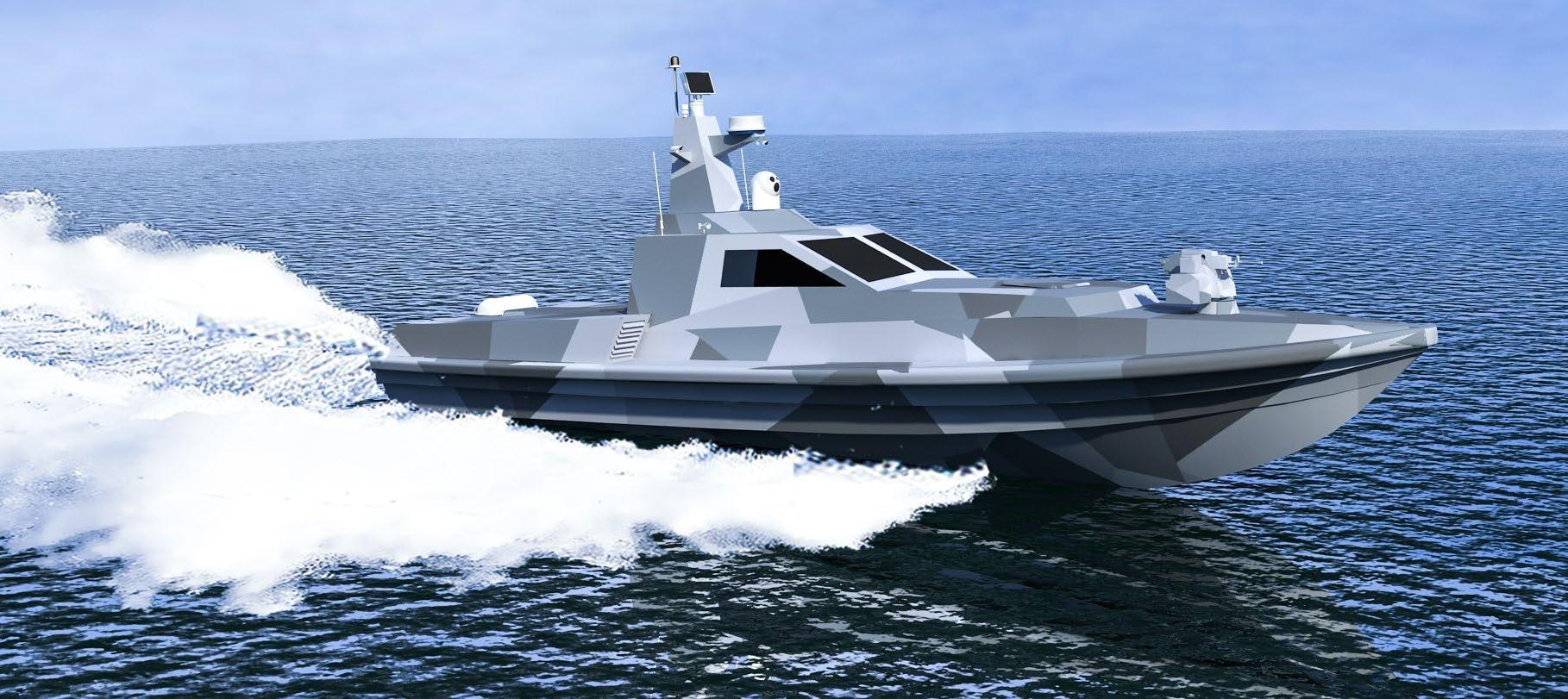

Engineered for demanding maritime operations, our 17m High-Speed Intelligent Unmanned Surface Vessel represents the absolute pinnacle of modern naval engineering. As a dedicated manufacturer, we designed this smart usv to deliver exceptional performance across challenging ocean conditions. It seamlessly combines high-grade carbon fiber construction with advanced autonomous capabilities for superior tactical mission execution.
Powered by premium twin diesel engines and surface-piercing propellers, our military usv effortlessly achieves speeds exceeding 50 knots. This exceptional rapid-response capability empowers operators to execute high-speed interceptions and easily outpace potential maritime threats. Our factory rigorously tests these propulsion systems to ensure highly reliable performance during critical security deployments.
We utilize military-grade carbon fiber reinforced polymer to expertly construct the durable hull of our usv boat. This sophisticated material choice provides an outstanding strength-to-weight ratio while significantly reducing the overall radar cross-section. The resulting lightweight structure ensures superior stealth characteristics and exceptional resistance against harsh corrosive marine environments.
Built specifically for unpredictable open ocean conditions, our highly capable platform maintains safe navigation capabilities in sea state 5. Operators can confidently deploy critical operational payloads in sea state 4 without ever compromising vessel stability. This robust all-weather resilience guarantees that your strategic missions continue effectively when conventional maritime platforms remain port-bound.
Equipped with cutting-edge usv technology, the vessel supports comprehensive autonomous functionalities including precision waypoint navigation and obstacle avoidance. The sophisticated control architecture enables perfectly seamless transitions between manual manned piloting and unmanned intelligent navigation modes. Furthermore, multiple units can coordinate flawlessly to execute complex networked swarm operations and advanced tactical maneuvers.

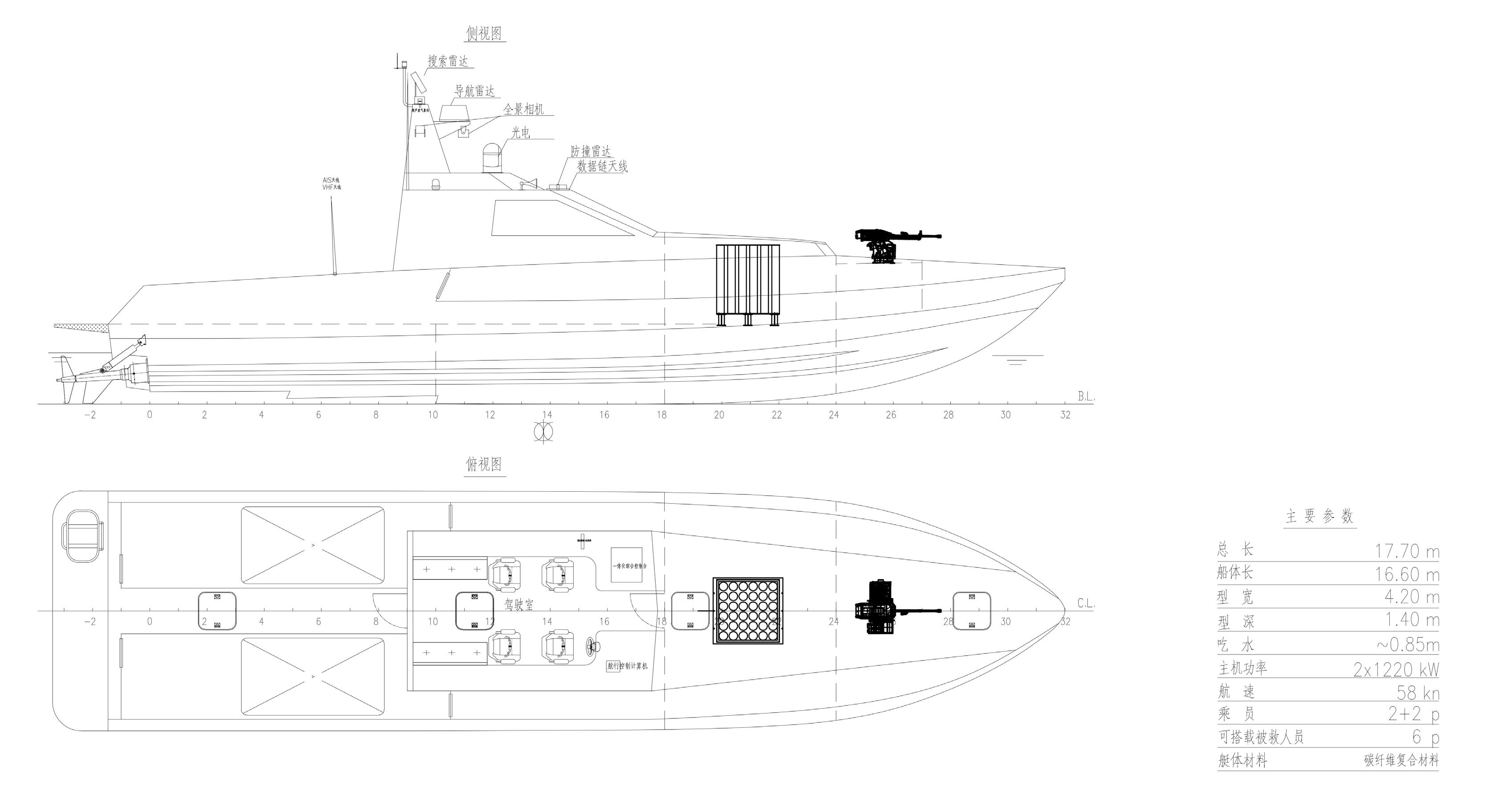

| Length Overall (LOA) | 17.70 m |
| Beam | 4.20 m |
| Mould Depth | 1.40 m |
| Draft | 0.85 m |
| Designed Displacement | 21 t |
| Maximum Speed | ≥50 knots |
| Cruising Speed | 20 knots |
| Endurance | ≥300 nautical miles |
| Certified Manning | 10 persons |
| Hull Type | Monohull Planing Craft |
| Seakeeping Performance | Weapons deployment in Sea State 4; safe navigation in Sea State 5 |
| Hull Material | Carbon Fiber Reinforced Polymer (CFRP) |
| Propulsion Options | 2 x 895 kW MTU diesel with surface drives, or 2 x 662 kW VOLVO diesel with surface drives |
| Control Modes | Manned piloting / Unmanned intelligent navigation |
| Autonomous Functions | Remote control, waypoint navigation, autonomous path planning, obstacle avoidance, fail-safe protection, auto-return |
Serving as a formidable offensive asset, our naval usv excels in engaging and rapidly neutralizing hostile surface targets. The flexible open architecture design allows seamless integration of various tactical payloads to significantly enhance maritime dominance. Naval forces globally rely on such specialized autonomous platforms to project power without risking valuable human personnel.
Our advanced maritime platform provides persistent surveillance capabilities across vast exclusive economic zones and highly sensitive coastal borders. The extensive 300-nautical-mile endurance facilitates continuous offshore monitoring to detect unauthorized entries and aggressively deter illegal smuggling activities. Custom configurations are readily available to meet the specific jurisdictional requirements established by different regional maritime authorities.
Equipped with sophisticated advanced sensor suites and secure encrypted data links, the vessel conducts long-endurance intelligence gathering operations. Our comprehensive usv solutions ensure stable real-time data transmission directly to command centers for immediate tactical analysis. This persistent situational awareness is absolutely crucial for maintaining strategic operational advantages within complex maritime security environments.
Operators initiate complex missions through a highly secure ground control station utilizing heavily encrypted communication data links. Pre-programmed navigational routes can be uploaded instantly and adjusted dynamically by personnel during active offshore deployments. Depending on specific operational requirements, crews can launch our usv unmanned surface vehicle efficiently via conventional boat trailers.
During active autonomous operations, the onboard artificial intelligence masterfully handles complex navigational tasks and unexpected environmental adaptations. In the rare event of communication loss, the built-in fail-safe protocol automatically navigates the vessel back to base. Post-mission recovery procedures involve straightforward secure data downloading and routine comprehensive system diagnostics supported by our technical team.
With decades of dedicated marine engineering experience, our state-of-the-art production facility delivers uncompromising structural quality in every vessel. We implement rigorous internal quality control protocols from initial carbon fiber molding to final autonomous system integration. Our highly dedicated engineering team ensures that every delivered unit consistently exceeds demanding international maritime security standards.
Understanding that specific operational requirements vary significantly, we offer extensive custom integration services for diverse tactical payloads. Whether clients require specialized communication modules or remote weapon stations, our technical department collaborates closely with your team. We take immense pride in delivering fully tailored maritime platforms that precisely match your long-term strategic objectives.
Clients can specify either twin 895kW MTU diesel engines or twin 662kW VOLVO engines for optimal performance. Both highly reliable propulsion configurations utilize advanced surface-piercing drives to consistently ensure maximum operational efficiency at sea.
Standard line-of-sight wireless communication effectively covers distances between thirty and fifty nautical miles during typical coastal maritime deployments. For global over-the-horizon autonomous operations, we can seamlessly integrate advanced secure satellite communication modules upon specific client request.
Our sophisticated integrated control architecture fully supports advanced networked swarm operations involving multiple intelligent automated surface vessels. This unique capability allows highly coordinated autonomous tactical actions for complex offshore perimeter defense and strategic intercept missions.
We supply highly comprehensive operational training covering mission planning software, autonomous system management, and routine mechanical maintenance. Our experienced professional instructors conduct live practical exercises using the actual vessel to ensure complete operator technical proficiency.
